| MC
Cable
(UL Listed E313205)
|
 |
|
Type and designation
|
Type
|
designation
|
|
MC
|

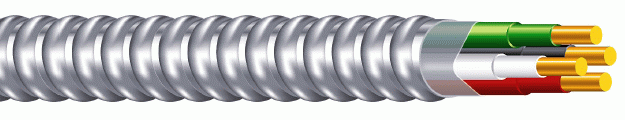

Lightweight Aluminum Interlocked
Armored Cable
|
Description of the purpose
MC Cable is suitable for use as follows:
• Branch, feeder and service power distribution in commercial, industrial, institutional, and multi-residential buildings.
• Power, lighting, control, and signal circuits.
• Fished or embedded in plaster.
• Concealed or exposed installations.
• Environmental air-handling spaces per NEC 300.22 (C).
• Places of Assembly per NEC 518.4 and theaters per NEC 520.5.
• As aerial cable on a messenger.
• Installation in cable tray and approved raceways.
• Under raised floors for information technology equipment conductors and cables per NEC 645.5(D) & 645.5(D)(2).
• Class I Div. 2, Class II Div 2, & Class III Div. 1 Hazardous Locations.
|
Standard
UL 83, UL 1063, UL 1569
|
Features
1,Reduces installation costs up to 50% over pipe and wire.
2,Lightweight aluminum armor--as much as 45% lighter than steel MC Cable.
3,UL Classified 1, 2, and 3 hour Through Penetration Firestop Systems: W-J-3037, W-L-3110, W-L-3113, W-L-3117,W-L-3120, W-L-3121, W-L-3160, C-AJ-3115, C-AJ-3140, C-AJ-3142, C-AJ-3145, C-AJ-3173, C-AJ-3202, C-AJ-4065,C-AJ-4066, F-C-3038.
4,Cable reverse wound on reel for ease of pulling and installation. When pulling from coils, pull from inside to ensure ease of installation.
|
| Specification
and Construction |
| MC Cable is constructed with soft-drawn copper, Type THHN/THWN conductors rated 90°C dry/75°C wet, available in sizes 14 AWG through 750 kcmil, and a green insulated grounding conductor (sizes 1/0 AWG and larger furnished with bare grounding conductor). The conductors are cabled together and a binder tape bearing the print legend is wrapped around the assembly. Aluminum interlocking armor is applied over the assembly. Refer to color chart for conductor color sequence.
|
| Conductor
Size (AWG) |
Solid
or Stranded |
Grounding
Conductor Size (AWG) and Stranding |
Overall
Diameter (inches) |
Approximate
Weight |
Ampacity |
Standard
Package |
| lbs./1000' |
kg./km. |
75°C |
90°C |
Coil
(feet) |
Reel
(feet) |
| 14/4 |
Solid |
14 sol |
0.496 |
135 |
201 |
15 |
15 |
250 |
1000 |
| 12/2 |
19 |
12-19 |
0.508 |
119 |
178 |
20 |
20 |
250 |
1000 |
| 12/2 |
Solid |
12 sol |
0.480 |
115 |
171 |
20 |
20 |
250 |
1000 |
| 12/3 |
19 |
12-19 |
0.543 |
147 |
220 |
20 |
20 |
250 |
1000 |
| 12/3 |
Solid |
12 sol |
0.512 |
141 |
211 |
20 |
20 |
250 |
1000 |
| 12/4 |
19 |
12-19 |
0.579 |
176 |
262 |
20 |
20 |
250 |
750 |
| 12/4 |
Solid |
12 sol |
0.547 |
169 |
252 |
20 |
20 |
250 |
750 |
| 10/2 |
19 |
10-19 |
0.579 |
170 |
254 |
30 |
30 |
250 |
750 |
| 10/2 |
Solid |
10 sol |
0.550 |
165 |
246 |
30 |
30 |
250 |
750 |
| 10/3 |
19 |
10-19 |
0.622 |
213 |
318 |
30 |
30 |
250 |
500 |
| 10/3 |
Solid |
10 sol |
0.590 |
207 |
309 |
30 |
30 |
250 |
500 |
| 10/4 |
19 |
10-19 |
0.669 |
257 |
383 |
30 |
30 |
250 |
500 |
| 10/4 |
Solid |
10 sol |
0.634 |
250 |
373 |
30 |
30 |
250 |
500 |
| 8/2 |
19 |
10-19 |
0.660 |
230 |
343 |
50 |
55 |
200 |
500 |
| 8/3 |
19 |
10-19 |
0.724 |
301 |
449 |
50 |
55 |
200 |
500 |
| 8/4 |
19 |
10-19 |
0.790 |
372 |
555 |
50 |
55 |
125 |
500 |
| 6/2 |
19 |
8-19 |
0.753 |
329 |
491 |
65 |
75 |
125 |
500 |
| 6/3 |
19 |
8-19 |
0.825 |
433 |
646 |
65 |
75 |
125 |
500 |
| 6/4 |
19 |
8-19 |
0.900 |
537 |
801 |
65 |
75 |
100 |
500 |
| 4/3 |
19 |
8-19 |
0.956 |
624 |
931 |
85 |
95 |
100 |
500 |
| 4/4 |
19 |
8-19 |
1.056 |
789 |
1178 |
85 |
95 |
100 |
500 |
| 3/3 |
19 |
6-19 |
1.032 |
776 |
1158 |
100 |
110 |
100 |
500 |
| 3/4 |
19 |
6-19 |
1.139 |
980 |
1462 |
100 |
110 |
100 |
500 |
| 2/3 |
19 |
6-19 |
1.089 |
915 |
1365 |
115 |
130 |
100 |
500 |
| 2/4 |
19 |
6-19 |
1.207 |
1164 |
1737 |
115 |
130 |
100 |
500 |
Note: Ampacities are based on Table 310.16 of the NEC, 2005 Edition.
Allowable ampacities shown are for general use as
specified by the National Electrical Code, 2005
Edition, Section 310.15.If the equipment is marked
for use at higher temperatures, the conductor
ampacity shall be limited to the following per NEC
110.14(C).75°C - When terminated to equipment for
circuits rated over 100 amperes or marked for
conductors larger than size 1 AWG.90°C - For
ampacity derating purposes.
Per NEC 310.15(B)(2)(a), the ampacity of 4/C
cables shall be reduced by a factor of 0.80 when
the neutral is considered a current-carrying
conductor.
Available in sizes up to 750 kcmil.
|
|
COLOR
CODING Standard Products |
| No.
of Conductors |
Color
Sequence |
| 2 |
Black,
White |
| 3 |
Black,
White, Red |
| 4 |
Black,
White, Red, Blue |
| Grounding
Conductor |
Green |
|
Other
special colors are available subject to
economic order quantity.
|
|
|
|
| |
|
|
|
|
